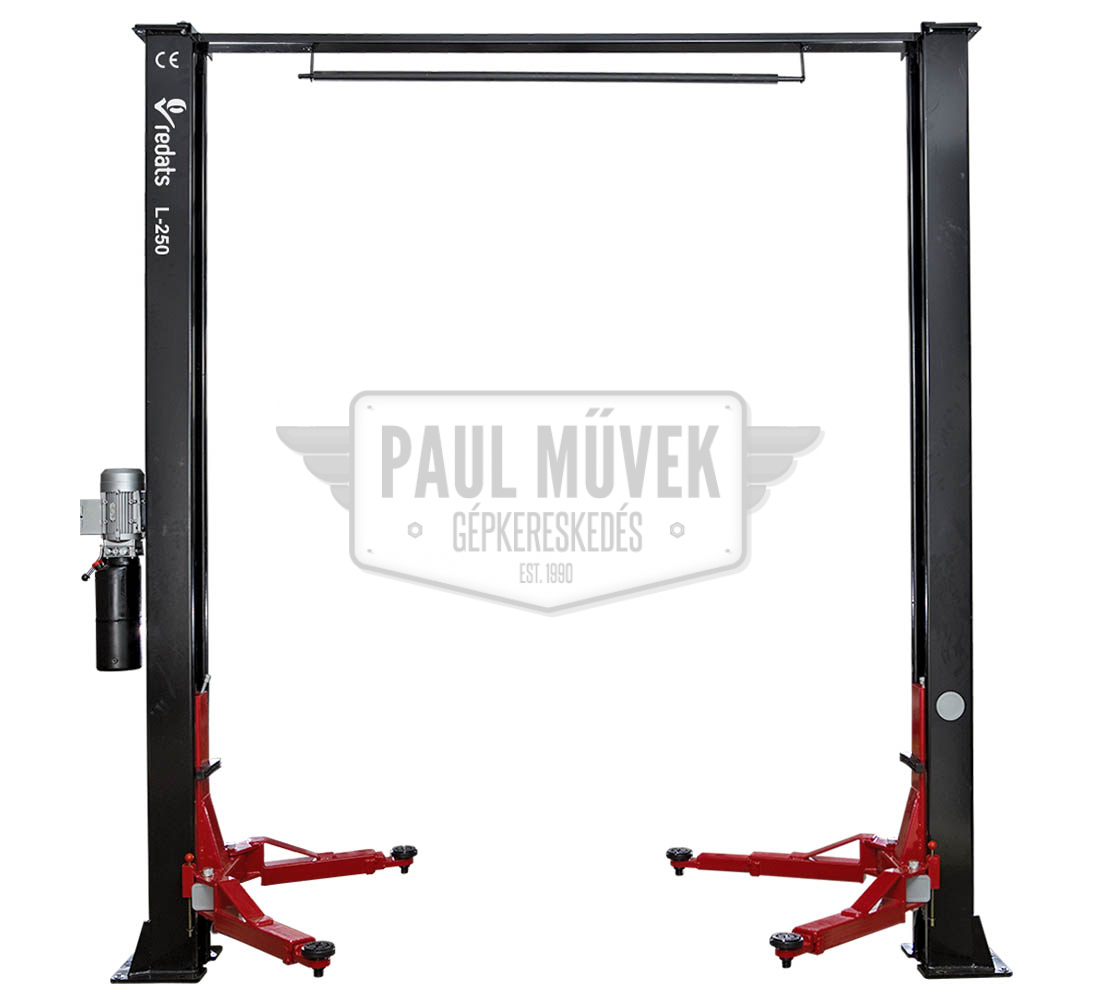

Description
Due to its 4000 kg lifting capacity the device is suitable for lifting passenger cars and LCVs. As a result of quick and easy standoff, favourable price-performance ratio, long service life and simple design, it’s a popular type.
OVERHEAD VERSION
Polish designed lift made with Polish hydraulic parts.
Due to its welded
base the devices installation is easy and quick.
Manual two-side release lift.

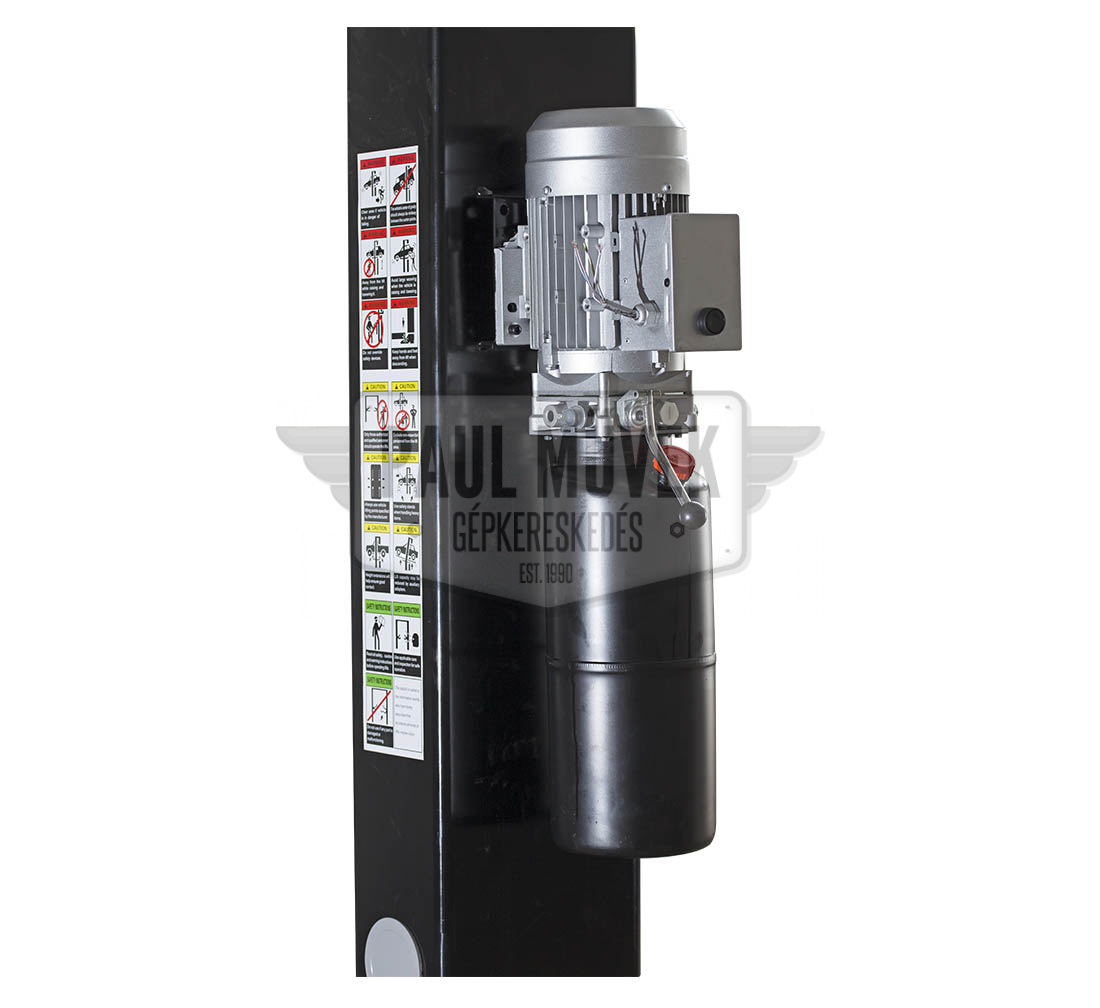

Electro-hydraulic RedATS product lift with three phases (400V), CE mark and asymmetric arms.
| Lifting height | 90-1875 mm |
| Lifting capacity | 4000 kg |
| Lifting time | 40 sec |
| Lowering time | 60 sec |
| Operation | electro-hydraulic |
| Release | manual |
| Base | – |
| Power | 2.2 kW |
| Power supply | 400V / 3 phase |
| Height | 3605 mm |
| Width | 3426 mm |
| Column width | 2800 mm |
| Arms | asymmetrical |
Universal car lift

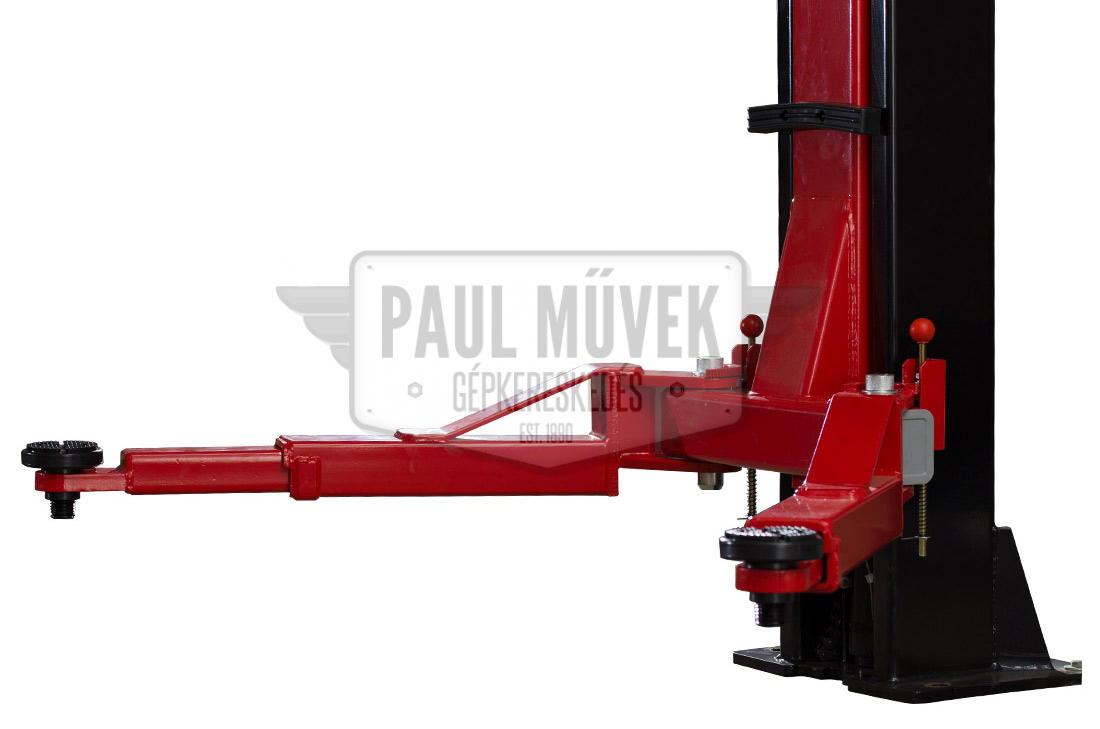

The asymmetric arms (shorter front arms, longer rear arms) are helping balance the
lifted vehicle properly. Due to the arm’s telescopic setting function the
proper position for lifting a vehicle is easily adjustable.
Welded base
This is a very successful new model of the L200 car lift. Thanks to its welded base the installation is easier than ever before. This lift is a perfect choice for you if your workshop does not have a flat minimum 30 cm thick concrete floor
Easy and quick use

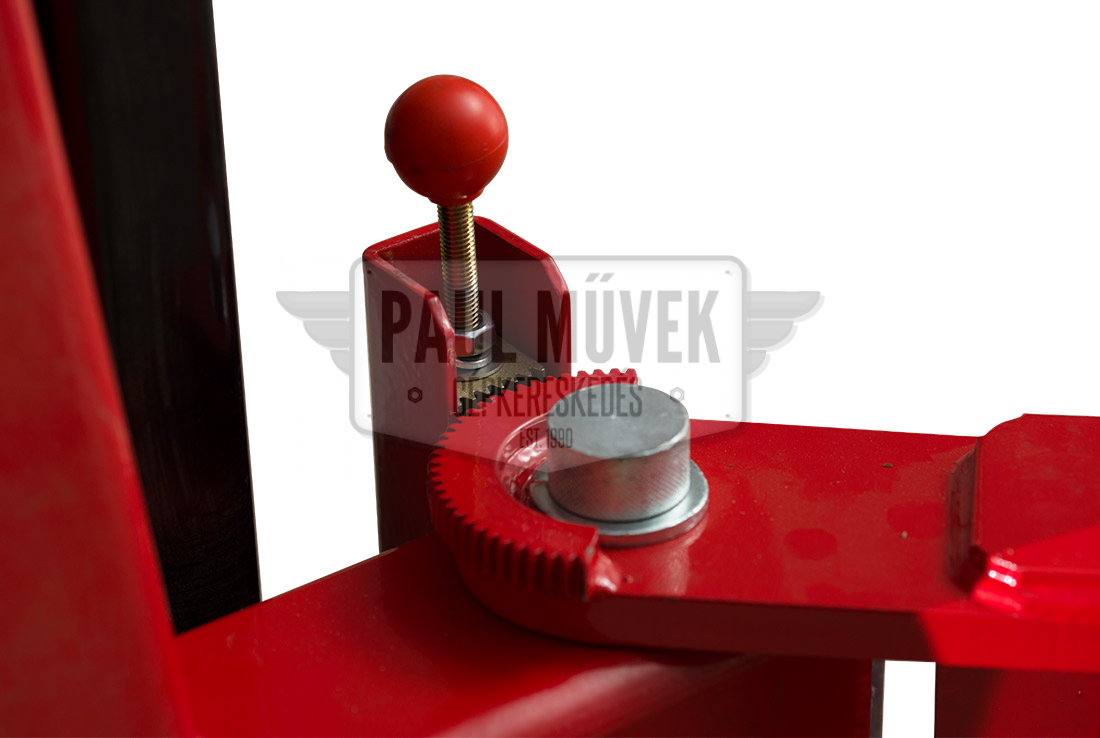

Put the car in the right position easily and quickly, then push the lift button. Before lowering the vehicle you have to pull an arm on each post. Additional advantage of the manual release function is that if there is any emergency, power outage the vehicle left on the lift is still can be lowered.
Long service life
The high quality of the parts and the top-notch craftsmanship guarantees long lifespan. Besides that all necessary parts are available from our stores quickly.
Safety first

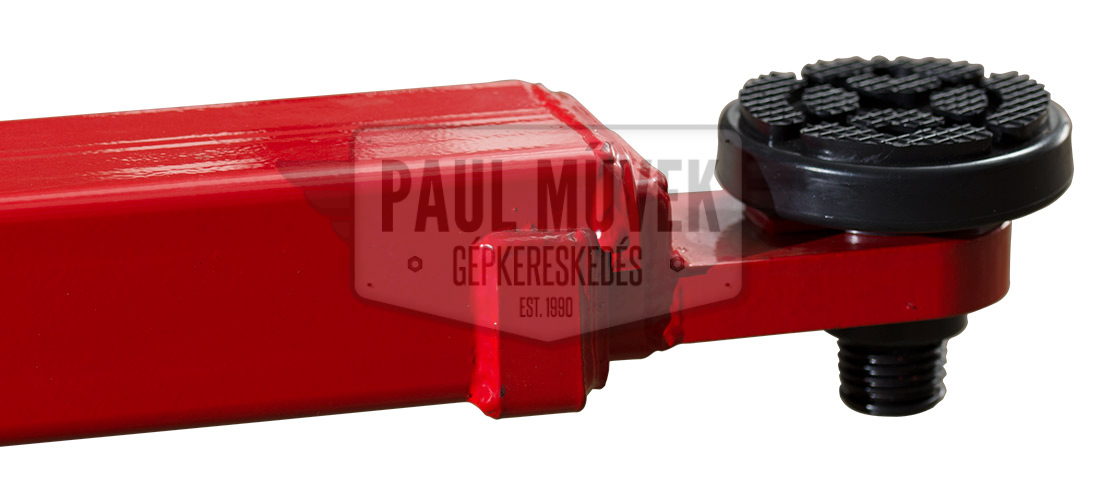

All the parts which can touch the cars surface are rubber coated, thus protects the car during the lift. 4 rubber pads are included in the factory accessories.
Preparing the floor
Preparing the floor before installing the two-post car lift is a must.
Size of the needed area: 1,5 m x 4 m x 30 cm flat ground.
The ground’s minimal thickness: 30 cm
Class B25 concrete
28 days for the floor to dry and harden
The floor must be a homogen concrete pad with the parameters mentioned above.
Installation and maintenance services
Installation for an additional fee
Comprehensive service, periodic inspection and supplying parts.
